  • By: SmallRig
  • SMALLRIG 3809B MONITOR MOUNT LITE WITH COLD SHOE

  • Quantity

  • Category: SUPPORT
    SKU: SR-3809B
Highlights
  1. Compatible Cold Shoe
  2. Swivels 360° & Tilts 180°
  3. Made of Aluminum Alloy
  4. Built-In 1/4"-20 Threaded Hole
Description

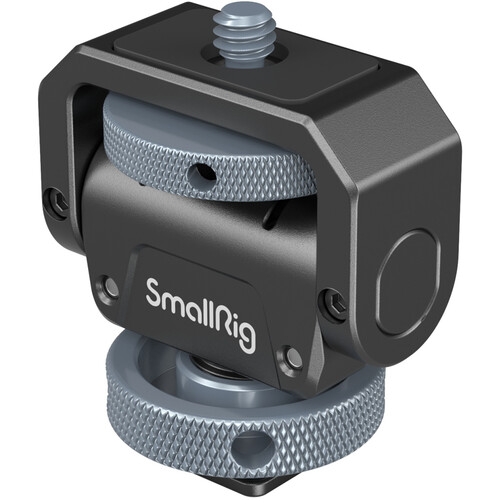

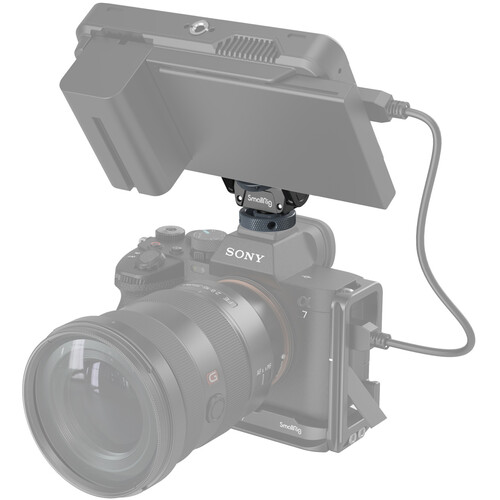

This Monitor Mount Lite with Cold Shoe from SmallRig attaches to a 5 or 7" monitor and has a cold shoe on the bottom to fit on a camera or a handle. The top 1/4"-20 screw supports a monitor, a microphone, or a light. It swivels 360° and tilts 180° with a degree of tightness adjusted via the included Allen wrench. The 1/4"-20 threaded hole at the bottom allows you to attach it to a Magic Arm 2070 or a Ball Head 1135. The upper and lower thumbscrew has holes for a wrench to easily disassemble. It has a protective rubber pad on the top for more friction to prevent deflection.


Highly compatible cold shoe

Swivels 360° and tilts 180°, tightness adjustable on each axis

The item is compatible with both 5 and 7" monitors, and supports accessories weighing less than 7.1 pounds

Built-in 1/4"-20 threaded hole for magic arm, ballhead, etc

Upper and lower thumbscrew has holes for spanner for easy disassembly

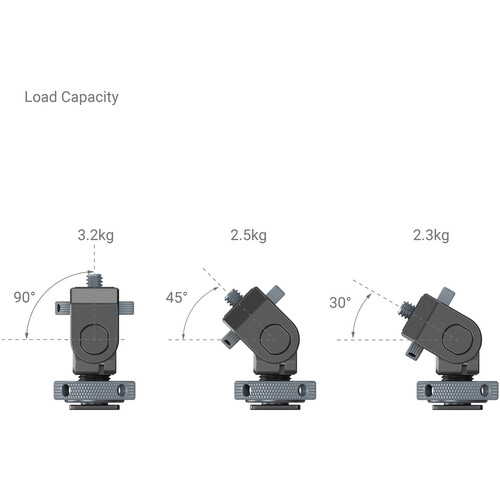

90° tilt load capacity: 7.1 lb. / 3.2 kg

45° tilt load capacity: 5.5 lb. / 2.5 kg

30° tilt load capacity: 5.1 lb. / 2.3 kg
