  • By: Tilta

  • Tilta Nucleus Nano Motor Kit 2

  • Price

    ₹19,490

    MRP: ₹19,490

    Inclusive of all taxes

  • Earn 194 CashPoints
    Redeem these CashPoints later & avail exciting offers.

  • Quantity

  • Category: Follow focus
    SKU: TL-614234708597
100% Secure Payments
Secure Packaging
100% Genuine Product
Track Your Order
Highlights
  1. This kit includes a nano motor, small 15mm rod, lens gear belt and WLC-T04-PC USB to USB power cable
  2. The Nucleus Nano Motor is compatible with all DSLR, mirrorless, and modified “cine-style” vintage photo lenses!
  3. The built-in 15mm rod adapter allows for flexibility and compatibility with a wide range of camera rigs and professional mounting solutions
  4. Simply set the Nano Motor and Nano Hand Wheel Controller to the same channel and you will have full control. The wireless range of both the Nano Hand Wheel Controller and Nano Motor is 300 feet!
Description

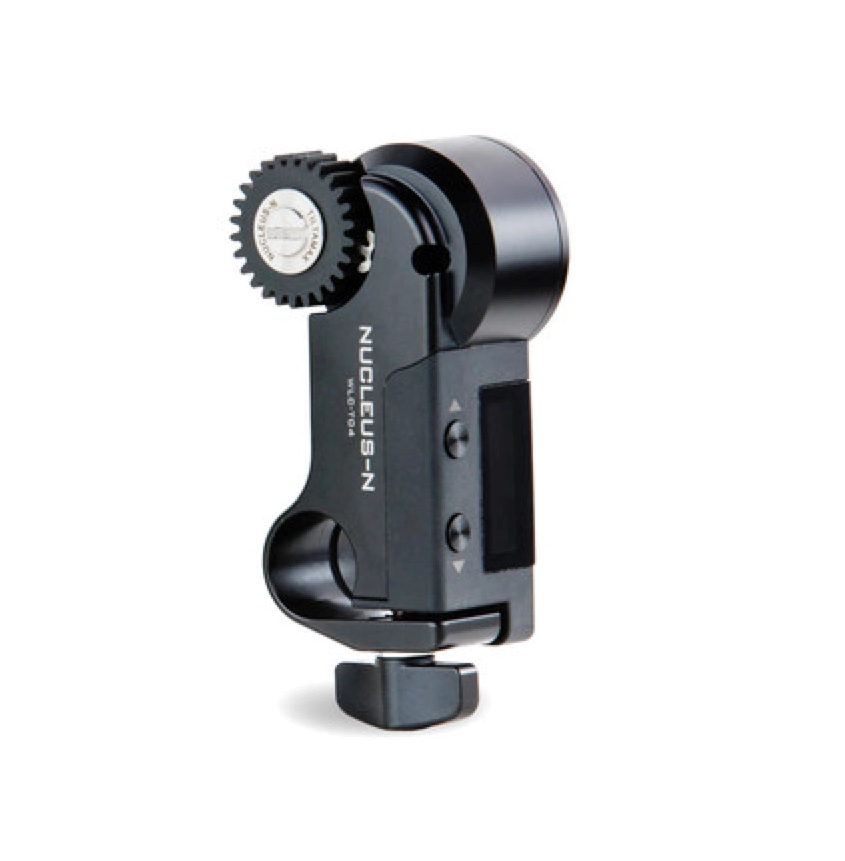

  • The Nucleus-Nano Motor Kit II is the perfect addition to your Side Focus Handle or an inexpensive options for adding an extra motor to your Nucleus M Kit.

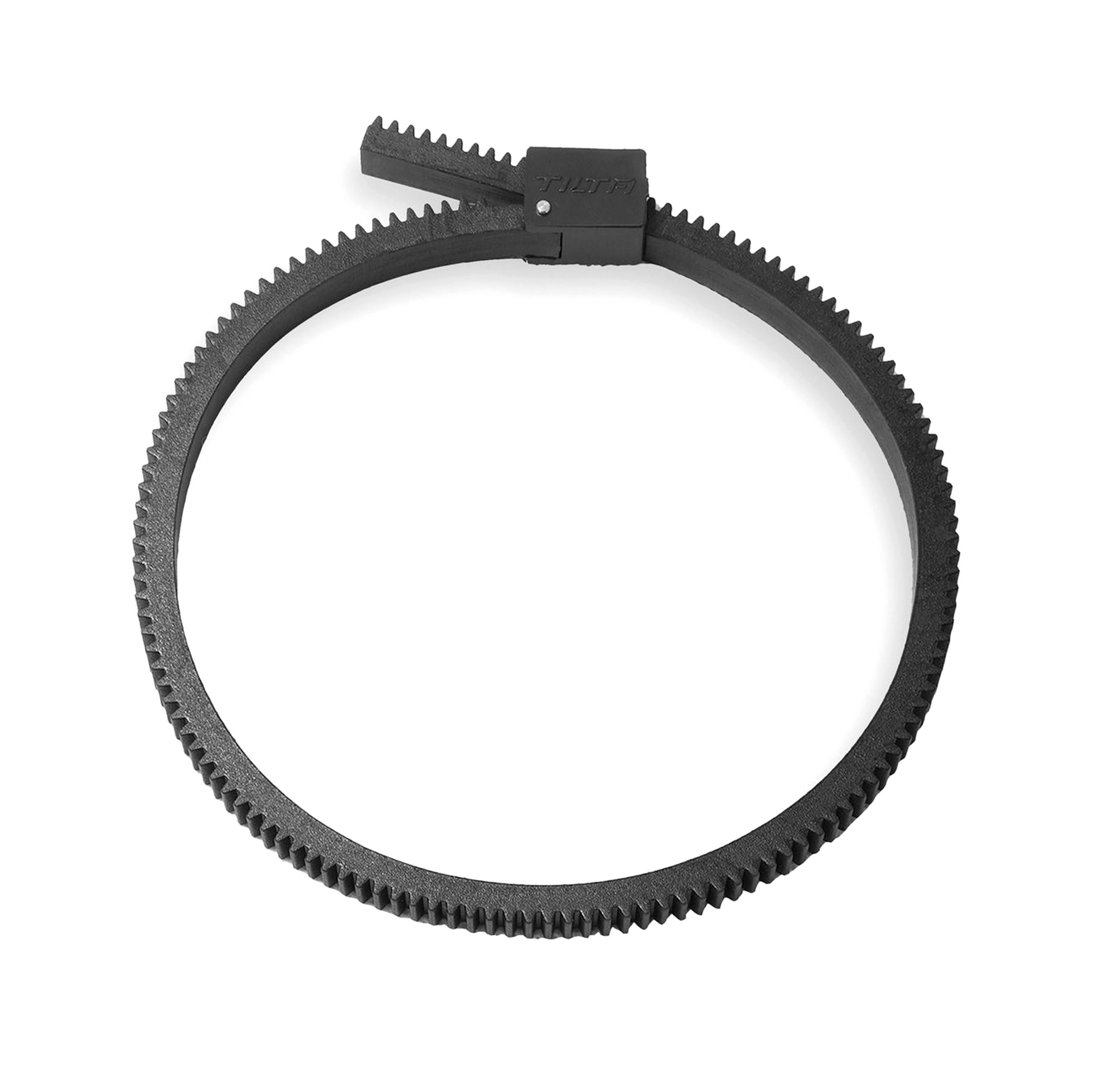

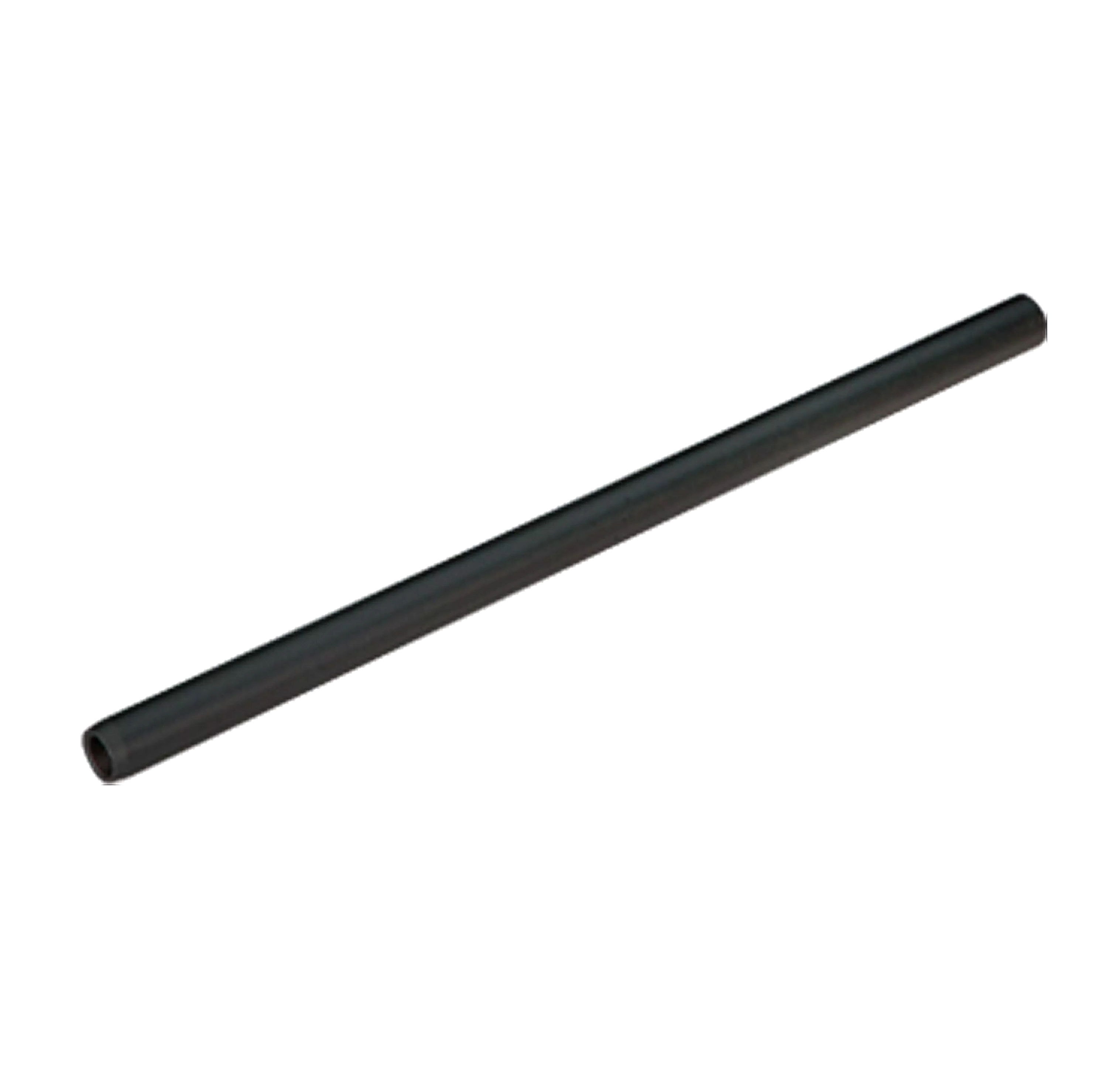

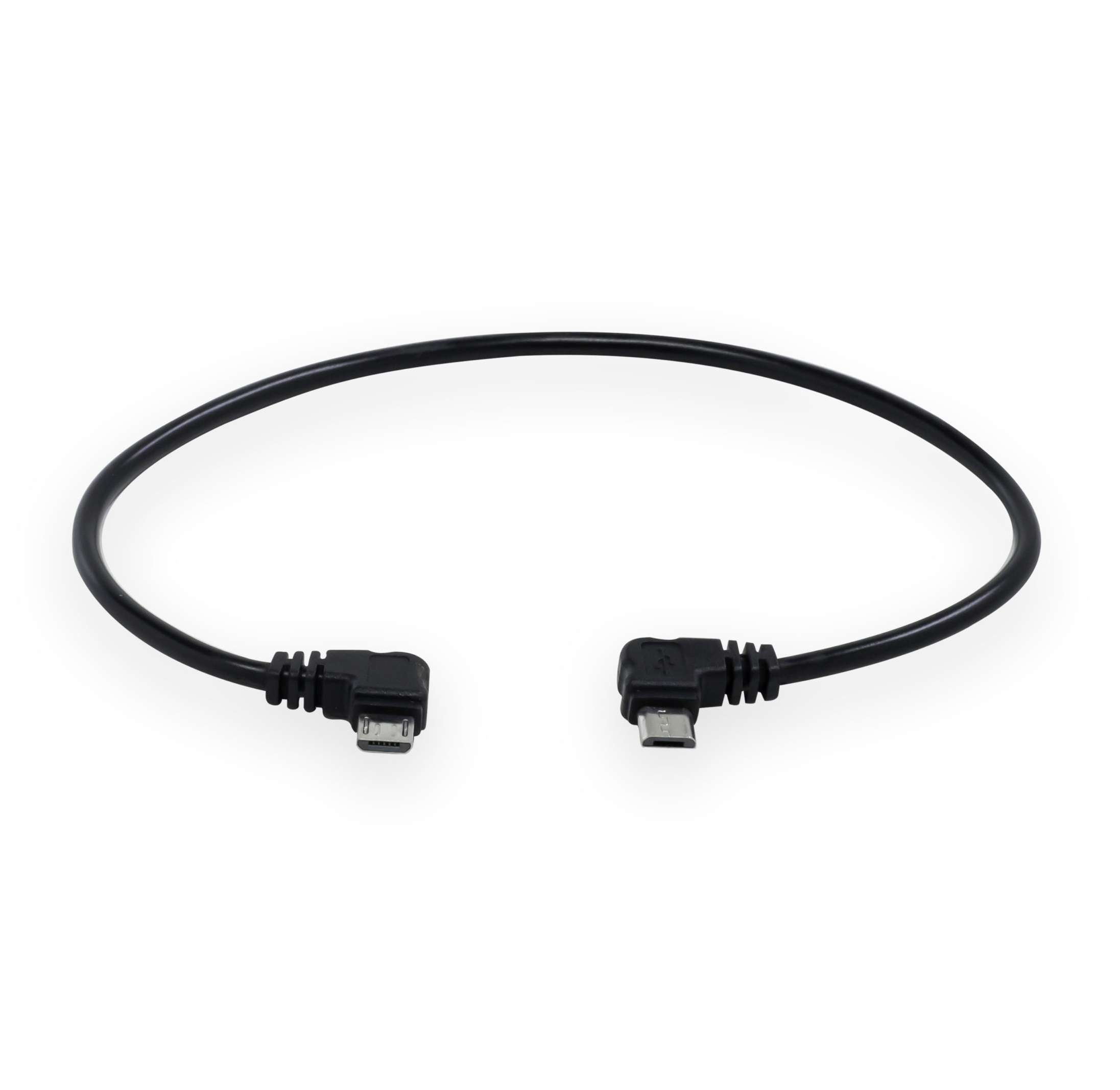

  • This kit includes the Nucleus Nano Motor, a Micro USB to Micro USB Power Cable, a small 15mm rod, and a Photographic Lens Follow Focus Gear Ring.
  • The Nucleus Nano Motor is compatible with most cine lenses via it’s 0.8 pitched gear and the included Photo Lens Gear allows you to adapt most lenses to work with the Nano.
  • The Nano Motor features low noise and impressive torque for its size. It can perform super fast focus pulls with silent precision!
  • The motor has a 5-18V input tolerance for power via a Micro USB port and will have access to greater torque when powered by a higher voltage source like P-Tap via the optional cable.
  • The Nano Motor has its own built-in motor drive that communicates directly with the Nano Hand Wheel Controller, Nucleus M FIZ, Hand Grips, or Side Focus Handles.
  • Simply set the Nano Motor and Nano Hand Wheel Controller to the same channel and you will have full control. The wireless range of both the Nano Hand Wheel Controller and Nano Motor is 300 feet!
  • The motor allows for automatic calibration of the lens as well as a manual calibration if you are using lenses that don’t have hard end stops at close focus and infinity via the ability to set A-B limits.
  • Every motor has a 0.8 mod, which is the standard gear size for most cinema lenses. The torque of the Nucleus-Nano Motor at 5.5V is 0.65N·m and at 14.8V is 1N·m
  • Lastly, the Nano Motor can provide record Run/Stop functionality for numerous camera systems through several different cables we offer for the system.
View More
Specification
MaterialsAluminum-alloy, stainless steel, ABS plastic
ColorBlack
DimensionsH:8 x W:2.2 x D:2.3 cm
Weight76 g
ImporterNikita Distributors - Green Terrace Building, Lane Number 5, South Koregaon Park, Pune 411001, MH, India
PackerNikita Distributors - Green Terrace Building, Lane Number 5, South Koregaon Park, Pune 411001, MH, India
Country Of OriginChina
ManufacturerTilta
